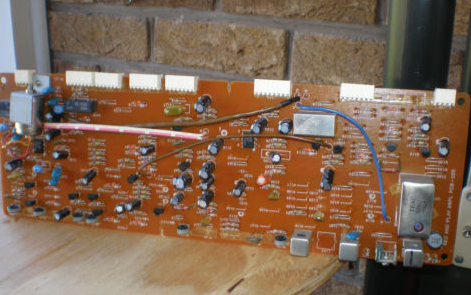

Tascam 38 main audio circuit board PCB 120 TEAC 52100748-02
Tascam 38 main audio circuit board PCB 120 TEAC 52100748-02
Regular price
£30.00 GBP
Regular price
Sale price
£30.00 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This was pulled from a working machine Tascam 38 machine
These boards do not often go wrong but they are worth buying as a spare in case you loose a channel
.
These boards do not often go wrong but they are worth buying as a spare in case you loose a channel
.
Please note that you may need to reset levels in your machine and set the bias up
again depending on your head, details are in the Tascam 38 manual .
Before you order this please change channels with another board, if its still faulty in the same
position then its likely the main mother board is faulty, if the channel that was working is now duff then you know
its the PCB need changing.
There are it seems different models as one i was using did not work on an earlier machine
this is number TEAC 52100748-02
There are it seems different models as one i was using did not work on an earlier machine
this is number TEAC 52100748-02
Be careful here the board from a Tascam 34 has exactly same number but IS NOT THE SAME, it is missing L104 maybe it will wok but the 34 board has more parts fitted to it
